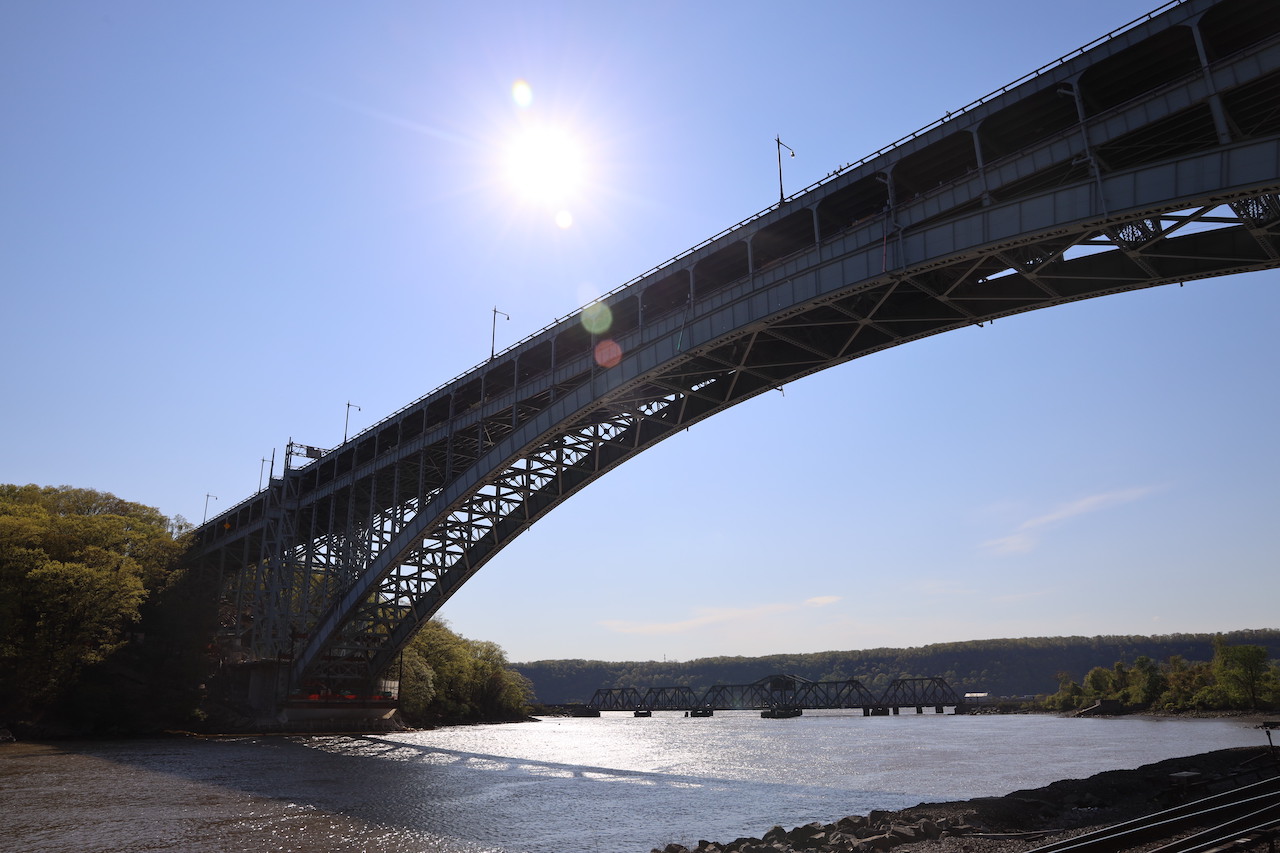

Project HH-10 – Henry Hudson Bridge – Replacement of the Upper-Level Curb Stringers and Roadway Lighting

Twin Peaks performed special inspections during the removal and replacement of the original 1930’s-era steel curb stringers supporting the upper-level roadway of the bridge.  The project’s total budget was $32 mm.

Twin Peaks performed special inspections during the removal and replacement of the original 1930’s-era steel curb stringers supporting the upper-level roadway of the bridge. The project’s total budget was $32 mm.

The original steel curb stringers installed during the bridge’s construction were not watertight.  Over the years, water had entered the stringers and caused deterioration in sections of the steel.

The old stringer boxes were removed and replaced by dozens of new sub-stringer steel beams.  Each beam weighed about 3,000 pounds and was hoisted into place from beneath the roadway to support the upper level.  A new roadway was then built where the old curb stringers once were. The new concrete decking formed a barrier against water infiltration.

New energy-efficient roadway lighting has been added to illuminate the wider roadways. The new roadway light poles replicate the style of lamp posts used during the bridge’s construction in order to maintain the historic Depression-era design.

Client:
Judlau Contracting, Inc.

Owner/Agency:
Metropolitan Transportation Authority/ Triboro Bridge and Tunnel Authority

Project Start/ End Date:
03/2011 –05/2015
